This circuit will allow you to turn on any piece of equipment that
operates on 115 volts ac.
The receiver circuit is based on the Radio Shack infrared receiver
module (MOD), part number 276-137. It is also available from some
of the other sources listed on my Links page. The MOD accepts a 40khz IR
signal that is modulated at 4 khz.

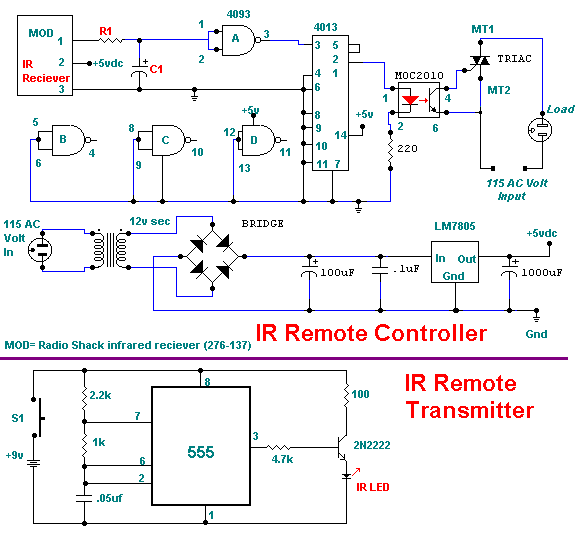

Circuit Diagram
When a
signal is received the MOD will go low. The sensitivity of the MOD is
set by different values for R1 and C1. The
values for R1 may need to be as high as 10,000 ohms and for C1 40uf.
This will prevent the unit from turning on under normal lighting
conditions.
You will need to experiment with the values that work best for you. The
output of the 4013 chip a flip flop
toggles on and off with the reception of a IR pulse. The output of the
4013 turns on the MOC optical coupler which in turn switches on the
triac and supplies
power to the AC load.

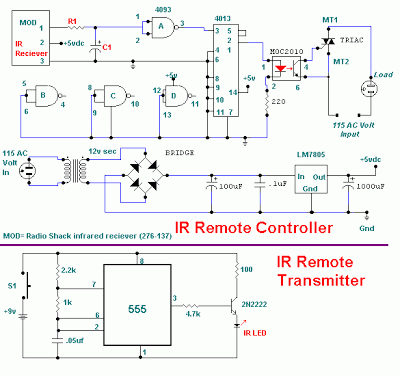

Circuit Diagram
